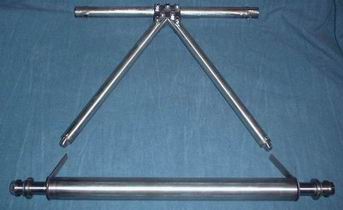

Parts made so far to furnish the cockpit include the

seat frame and pilot's seat which can be adjusted for seat height.

seat  adjustment





sfa12.jpg sfa1.jpg


Work has begun on some of the other items required for the cockpit.

The elevator trim wheel.






Early construction of the compass mount.




The finished bracket.




Flap Control Valve.

The flap control valve is spring loaded and will be fitted with a push rod that operates a micro switch interfaced with the filght sim data.



Rudder trim control.

This was machined from nylon.The stencil for the lettering was made from a resized picture of the trim control, the letters then cut out using a scalpel.

rt2.jpg  rt3.jpg













 Compass correction card holder


Chassis control unit

ccs1.jpg ccs3.jpg




The completed chassis control unit.



Gunsight Mount




Kigas primer pump

kp.jpg kp2.jpg



Reflector Gunsight.



Pilots B/P windscreen frame

latest item made for the project is the frame for the bullet proof windscreen.the real item is a casting. The frame i made is fabricated from 19 separate items.





New build pilots seat made from 18G sheet aluminium.




The new seat almost complete, just need to add some fittings for the sutton harness and the seat back cushion.



De-icing tank




New build pilots seat completed


Elevator and Rudder trim assemblies




Sutton Harness Release Gear






Dimming Screen

Something i had overlooked when making the gunsight mount was the dimming screen. This has now been made and fitted.

ds1.jpg ds3.jpg
